L07246| WELS: 4 Star | Litres / min: Full Flush: 4.4L, Half Flush: 3L, Average Flush: 3.3L
Product Details

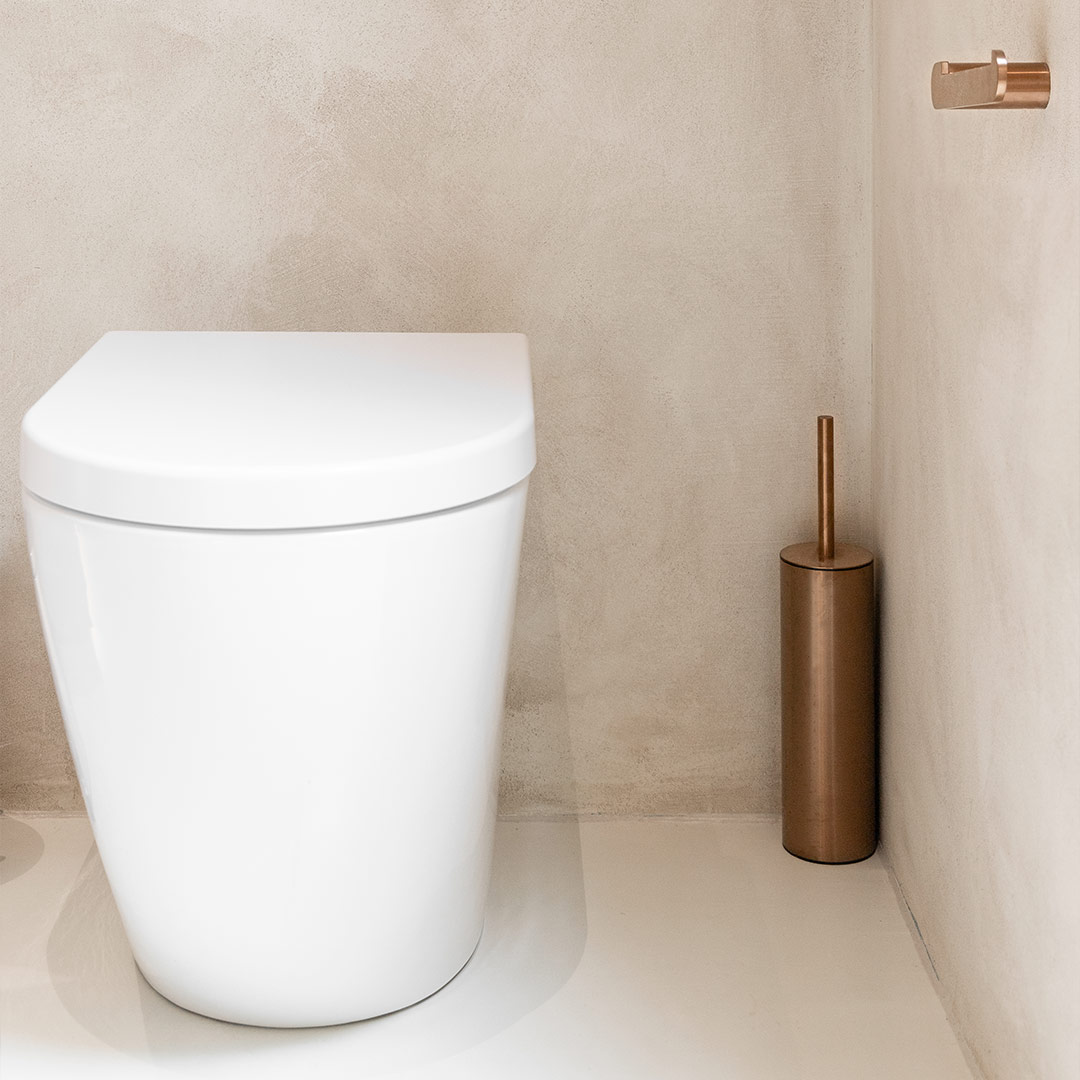

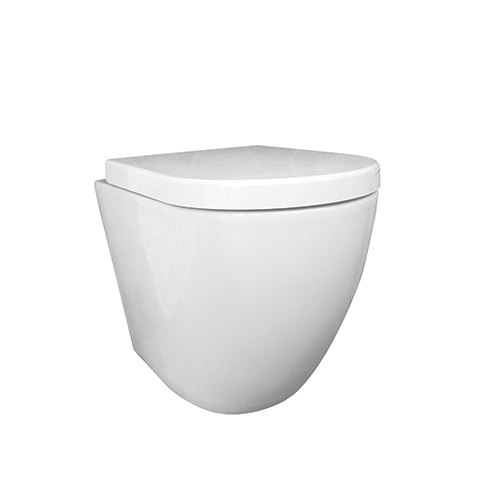

The Asher Toilet Pan is the perfect solution for your bathroom. Its smooth, rounded shape pairs perfectly with our In-Wall Cistern and Zaaha Toilet Buttons.
Functionality is enhanced thanks to a powerful circular flush technology, which is carefully concealed within the pan for superior cleaning.
Please Note:
– The Asher Toilet Pan has holes on the sides to accommodate stainless steel-covered floor mounting brackets (not pictured in the images).
Features:
– Aesthetically pleasing glazed porcelain construction.
– Soft close seat for enhanced hygiene and safety.
– Circular flush technology projects powerful jets of water concealed within the body of the pan, creating a circulating whirlpool that cleans the bowl thoroughly.
Dimensions:
– Projection: 560mm
– Overall Height: 440mm
– Pan Height: 400mm
– Width: 354mm
– Set Out: 140mm
Shop Other Colour Options
Shop Other Colour Options
Product Info
Glazed Porcelain
Soft Close
Ease of Cleaning
| SKU | 10061 |
| Weight | 33.8kg |
| Trap type | P Trap or S Trap using conversion bend (supplied) |
| Setback | 140mm (finished wall line to centre of floor pipe) |
| Pan Material | Glazed Porcelain |
| Seat material | Soft close - Hardened Polypropylene (PP) |
| Water inlet | In wall cistern |
| Inclusions | Toilet Pan |
| Warranty | 10 years Structural Warranty, 5 Years Finish and Coating |
| Watermark | WMK25988 |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Asher Toilet Pan | 10061 | 10 | 5 | - | 2 | 5 | 1 | - | 1 | - | - | - | - |
4
Water Rating
Full Flush: 4.4L, Half Flush: 3L, Average Flush: 3.3L
Litres Per Minute
L07246
Registration Number
Product Documents
| Asher Toilet Pan - Specification |  |
Bim Files
| View Product |  |
| View Library | |
Product FAQs
Can I install this myself?
No, this product must be installed by a licensed tradesperson.
Is the Asher Toilet Pan a rimless flush?
The Asher Toilet Pan has a rimless circular flush technology where the flush is concealed within the body of the pan where it is channeled through holes on the underside of the brim. Please refer to the following diagram here.
